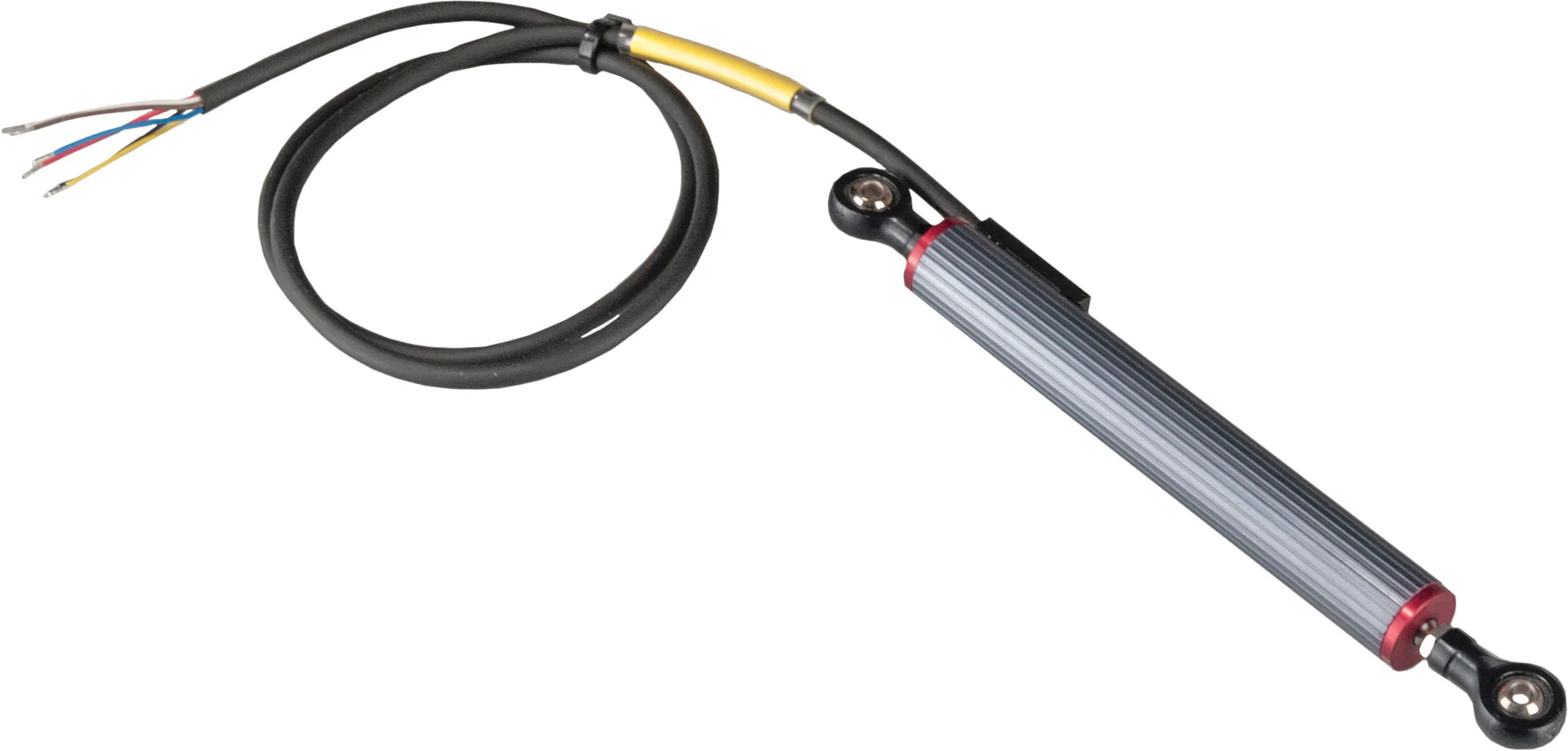

OBP Dual Signal Linear Potentiometer
p>Linear Potentiometer for obp Motorsport Pedal Systems
Our specially selected range of products that work in unison with all of our obp Motorsport core hardware. Whether you are looking for master cylinders, bias adjusters or replacement parts. obp Motorsport has you covered.
Product Information:
Maximum Supply Voltage: 40 VDC
Resolution: Infinite
Repeatability: ≤0.01mm
Operational Speed: 10 m/s
Mechanical Life: > 25 Million Cycles
Recommended Wiper Current: < 10μA
Independent Linearity: ≤ +/- 0.5%
Connection & Output Details: 6 Core Cable
Track 1
Red = +V
Black = 0V
Yellow = Signal
Track 2
Brown = +V
Blue = 0V
White = Signal
Displacement
Fully Closed = +Vmax
Fully Open = 0V
The displacement signals may be reversed by swapping the connections to the Red & Black wires or Brown & Blue wires, providing +Vmax output when Full Open & 0V when fully closed.
DO NOT connect +V supply to the Yellow and White (signal) wires, as this may cause damage to the sensor element.
Our specially selected range of products that work in unison with all of our obp Motorsport core hardware. Whether you are looking for master cylinders, bias adjusters or replacement parts. obp Motorsport has you covered.
Product Information:
Maximum Supply Voltage: 40 VDC
Resolution: Infinite
Repeatability: ≤0.01mm
Operational Speed: 10 m/s
Mechanical Life: > 25 Million Cycles
Recommended Wiper Current: < 10μA
Independent Linearity: ≤ +/- 0.5%
Connection & Output Details: 6 Core Cable
Track 1
Red = +V
Black = 0V
Yellow = Signal
Track 2
Brown = +V
Blue = 0V
White = Signal
Displacement
Fully Closed = +Vmax
Fully Open = 0V
The displacement signals may be reversed by swapping the connections to the Red & Black wires or Brown & Blue wires, providing +Vmax output when Full Open & 0V when fully closed.
DO NOT connect +V supply to the Yellow and White (signal) wires, as this may cause damage to the sensor element.
