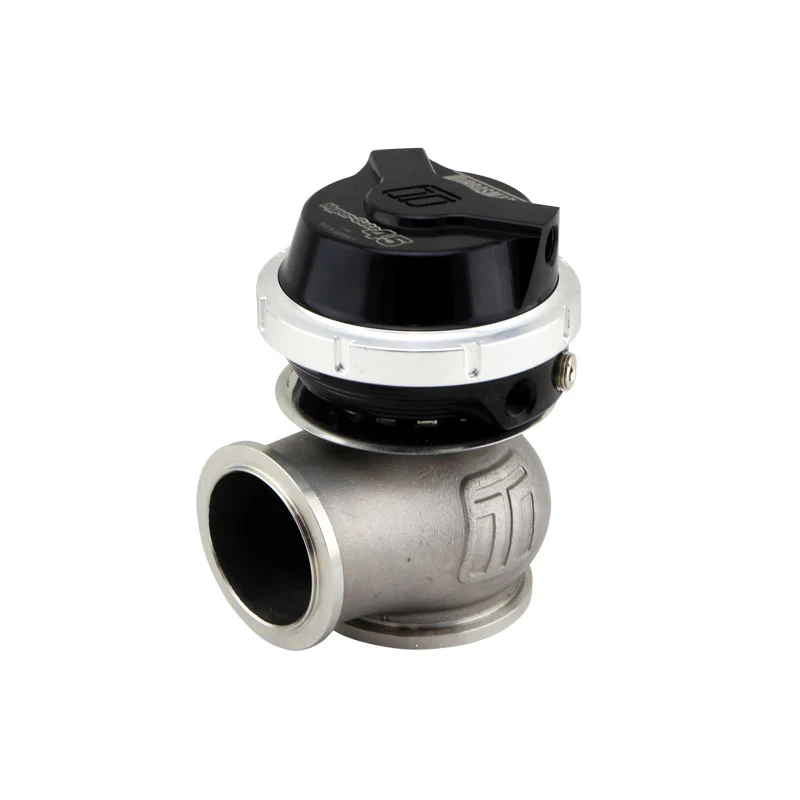

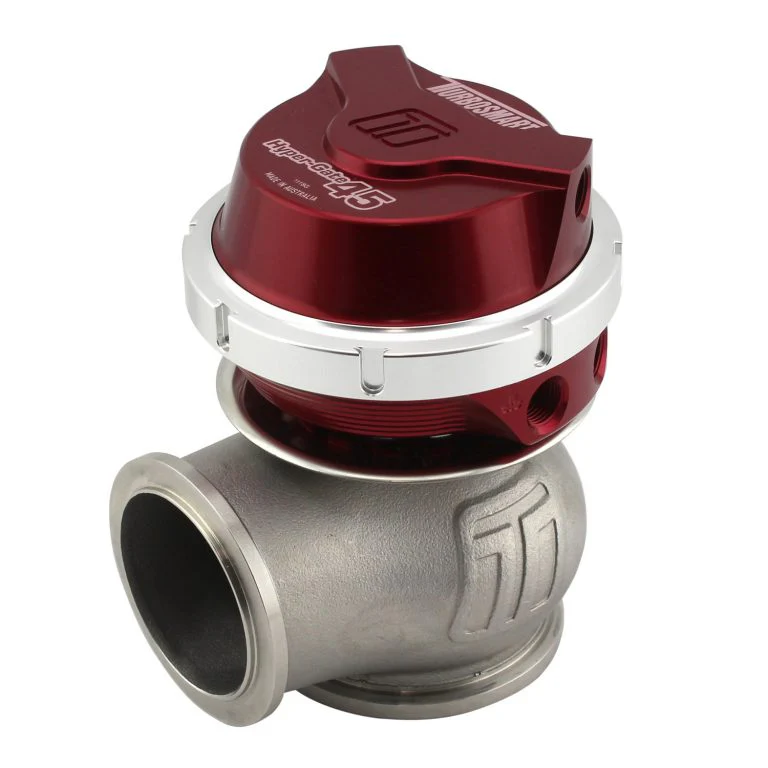

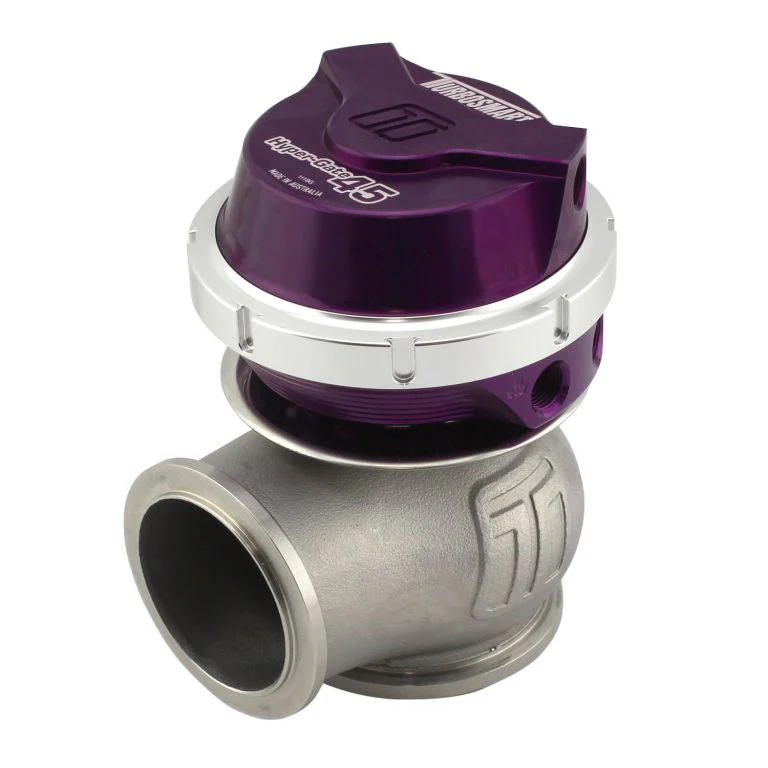

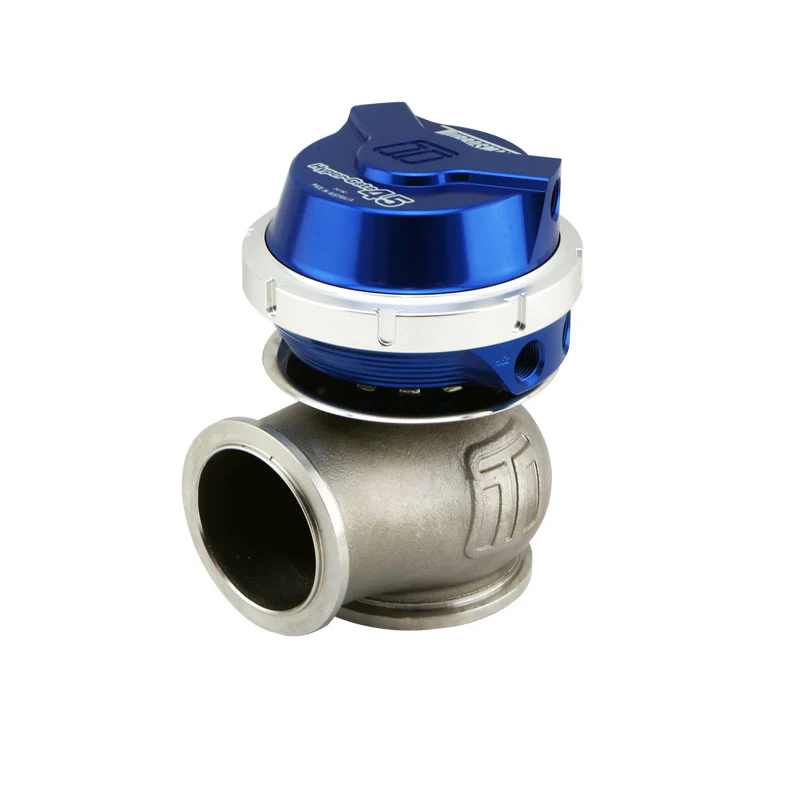

Turbosmart HyperGate45 GenV 45mm External Wastegate
If you're searching for a 45mm wastegate, a HyperGate45, or a compact motorsport external wastegate that delivers serious boost control without excessive bulk — this is the sweet spot.
The Turbosmart HyperGate45 GenV is one of the most widely used 45mm external wastegates in performance street and track applications. It offers excellent bypass capacity while remaining compact enough for tight engine bays and high-mount turbo setups.
At Walton Motorsport, the 45mm is often our recommendation for fast road, track day and responsive turbo builds where packaging space matters as much as control.
Why Choose a 45mm External Wastegate?
A 45mm wastegate offers the ideal balance of:
• Strong boost control authority
• Compact physical size
• Excellent packaging flexibility
• Reduced heat management issues
• Clean manifold integration
For many medium-sized turbochargers, a 45mm gate provides more than enough exhaust bypass capacity without the physical footprint of a 50mm or 60mm unit.
Bigger is not always better.
Correct gate sizing depends on turbo size, manifold flow, turbine housing and target boost levels.
The GenV Difference
The GenV HyperGate45 is not just an update — it’s a complete redesign.
The only feature retained from the Gen4 version is the mounting orientation to allow direct upgrades.
Everything else was re-engineered using CFD modelling and in-house flow validation.
Key Features
• Class-leading thermal performance
• CFD-optimised and bench validated flow path
• Nitronic 60 valve guide
• High-temperature 347 stainless steel body
• 17-7 PH stainless steel springs
• Modular actuator housing with 360° rotation
• Optional liquid cooling ports
• Strap-type V-band clamps
• Collar-locking cap system
The result is improved fatigue resistance, superior thermal stability and consistent boost control under sustained load.
Real-World Boost Control
A correctly sized 45mm wastegate helps:
• Prevent boost creep
• Maintain stable low boost levels
• Improve throttle response
• Improve torque management
• Deliver repeatable boost targets lap after lap
Especially when paired with a properly designed turbo manifold.
(And yes — that matters.)
Direct Upgrade for Gen4 HyperGate45
The inlet and outlet orientation remains unchanged from Gen4, allowing:
• Direct replacement upgrades
• Simple integration for existing turbo kits
• No flange modification required
Modern internals. Proven fitment.
What’s Included in the Box
• GenV HyperGate45 Wastegate
• Full spring kit (3, 5, 7, 14 psi)
• One spring pre-installed
• SS316 valve seat
• V-band clamps
• Inlet and outlet weld flanges
• Collar locking tool
• 1/8” NPT plugs and fittings
• Mounting hardware
Everything required for installation is included
Frequently Asked Questions
Do I need to use the liquid cooling ports?
No.
Liquid cooling is optional and generally only required for extreme endurance or tightly packaged engine bays with minimal airflow.
The GenV HyperGate45 already includes multiple layers of thermal management:
• CFD-optimised heat flow
• Thermal isolating ceramic spacers
• Highly thermally stable diaphragm material
For most high-performance builds, liquid cooling is not necessary.
Can the actuator housing be rotated?
Yes.
The GenV design allows full 360° actuator rotation.
This provides flexibility when routing boost reference lines and allows you to avoid running hoses past heat sources like turbo manifolds.
It also enables cleaner, more professional engine bay presentation.
Will the GenV HyperGate45 fit where my Gen4 did?
Yes.
The inlet and outlet mounting orientation remains identical to Gen4 for direct upgrade compatibility.
The GenV was redesigned internally while maintaining fitment consistency.
How do I change the spring(s)?
The GenV uses a collar-locking cap system.
You must use the supplied collar tool and apply downward pressure to the cap before removing the locking collar.
This design prevents accidental loosening under vibration and is part of the GenV reliability improvements.
Always follow the official installation instructions.
What size are the boost reference ports?

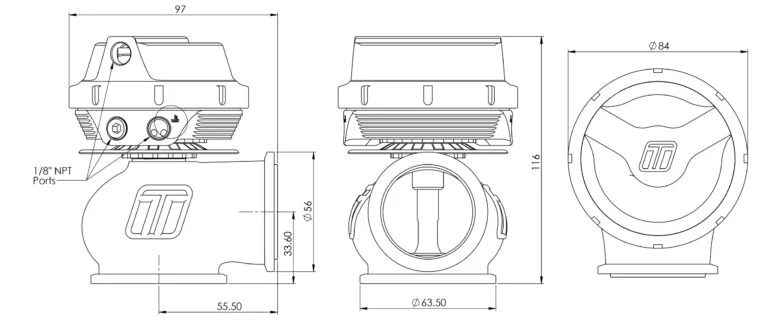

All boost reference ports and optional liquid cooling ports are 1/8” NPT.

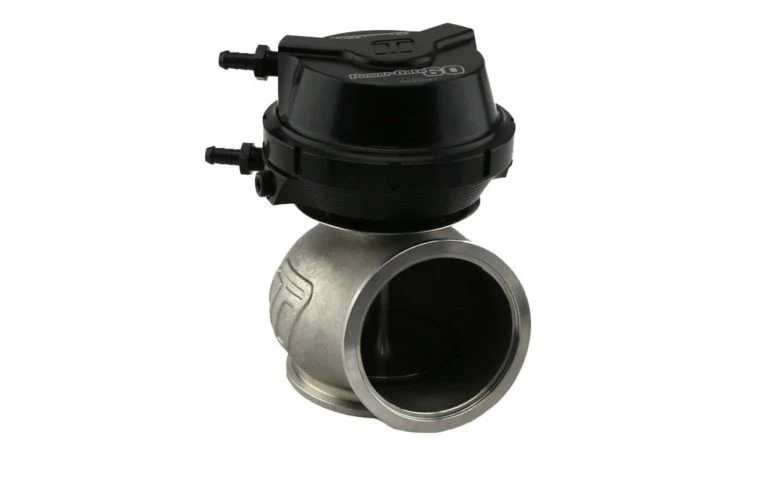

Stainless hose tail barbs are included for conventional hose setups.
For motorsport applications, -3AN or -4AN fittings and PTFE lines can be used.
Is a 45mm Wastegate Big Enough?
For many street and track builds — absolutely.
A 45mm external wastegate is ideal for:
• Medium frame turbochargers
• 400–750hp systems (application dependent)
• Fast road and track cars
• High-mount and tight packaging installations
If you're unsure whether 45mm, 50mm or 60mm is correct for your turbocharger and manifold combination, contact us before ordering.
Why Buy From Walton Motorsport?
We don’t just sell Turbosmart parts.
As a UK-based turbo manifold manufacturer, we integrate wastegates into real boost control systems daily.
We understand how:
• Manifold runner design
• Collector merge angle
• Turbine housing size
• Exhaust backpressure
…all affect wastegate sizing.
Boost control is system engineering — not catalogue shopping.
If you need advice, speak to us before clicking buy.
